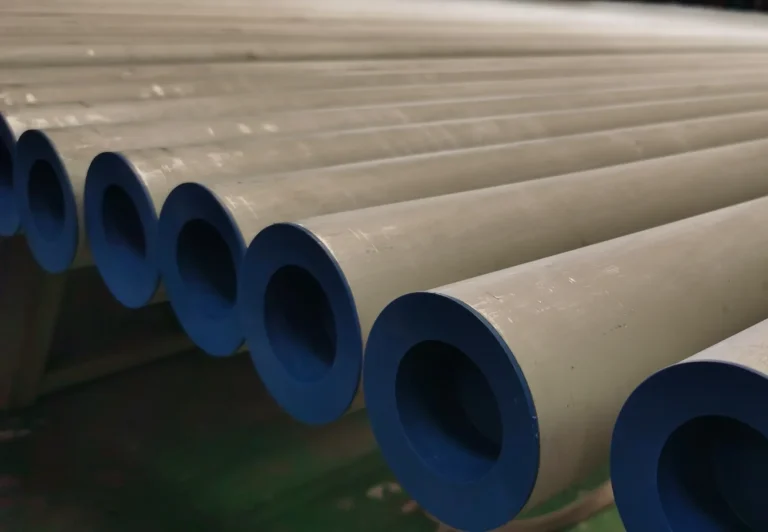

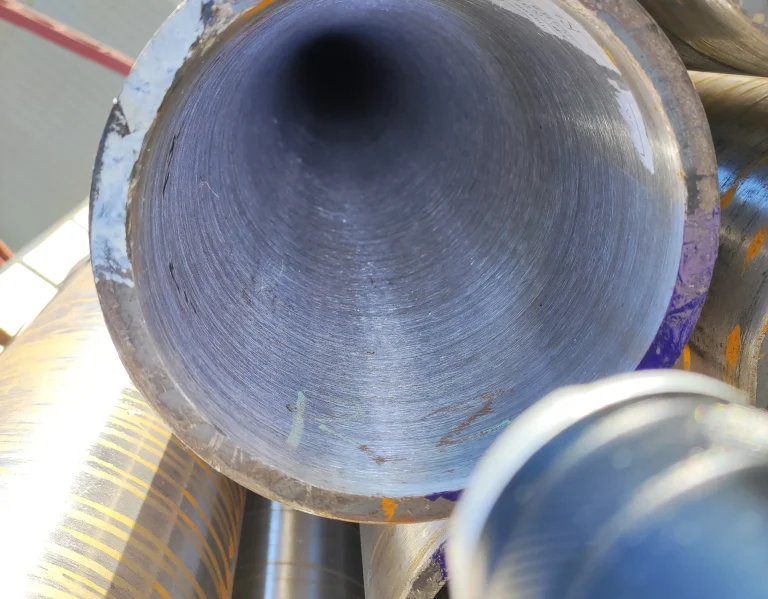

Incoloy 825 Pipe & Tube Manufacturer
What is Incoloy 825 Pipe & Tube
Manufacturing Capabilities of Kaysuns
Kaysuns leverages over a decade of manufacturing expertise and specialized equipment to provide seamless pipes ranging from 1/2“ – 24” / 6 mm to 610 mm and welded pipes from 6“ – 104” / 159 mm to 2800 mm.We accommodate small-batch orders with fast,flexible delivery schedules. For your needs,we can bundle complementary products such as plates,forgings,flanges,ingots, and various fasteners.Custom non-standard solutions are available to deliver comprehensive solutions.Contact us anytime.
Incoloy 825 Equivalent Designations
- UNS N08825
- W.Nr. 2.4858
- JIS NCF 825
- EN NiCr21Mo / NiCr21MoCu / CrNiMo21-42-3
- ASTM B423 / ASTM B705 / ASTM B704
- ASTM B424 / ASTM B425 /ASTM B564
Have a requirement?
Contact Us For More Information
Chemical Composition of Incoloy 825 Pipe, wt.%
| Ni | Fe | Cr | Mo | Cu | Ti | C | Mn | Si | S | Al |
|---|---|---|---|---|---|---|---|---|---|---|
| 38.0 – 46.0% | 22.0% Min | 19.5 – 23.5% | 2.5 – 3.5% | 1.5 – 3.0% | 0.6 – 1.2% | 0.05% Max | 1.0% Max | 0.5% Max | 0.03% Max | 0.2% Max |
What Gives Incoloy 825 Pipe Corrosion Resistance?
What is The Difference Between Incoloy 825 And Inconel 625?
Mechanical Properties of UNS N08825
| Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Hardness (Max) |
|---|---|---|---|
| ≥ 586 MPa (85 ksi) | ≥ 241 MPa (35 ksi) | ≥ 30% | 135 – 165 HB(75 – 90 HRB) |
Mechanical Behavior at Different Temperatures
| Temperature (°C) | Tensile Strength | Yield Strength | Modulus of Elasticity |
|---|---|---|---|
| Room Temperature | 585 | 240 | 196 |
| 204 | 515 | 180 | 187 |
| 427 | 485 | 155 | 174 |
| 538 | 465 | 145 | 168 |
Incoloy 825 Key Mechanical Properties
- Strengthening Method:
This alloy cannot be hardened by heat treatment but exhibits significant strength improvement through cold working. - Low-Temperature Performance:
Maintains excellent impact strength and toughness in cryogenic environments without exhibiting brittle transition. - High-Temperature Limitations:
Prolonged exposure above 540°C (1000°F) causes microstructural changes (phase precipitation),significantly reducing toughness and elongation.Therefore,it is unsuitable for designs requiring consideration of creep fracture performance. - Forming and Welding:
Exhibits excellent formability and weldability.Its cold work hardening rate is slightly lower than that of standard austenitic stainless steels,but still requires higher-powered processing equipment.
Incoloy 825 Pipe Physical & Thermal Properties
- Density:8.14 g/cm³ (0.294 lb/in³).
- Melting Range:1370–1400°C (2500°F – 2550°F).
- Modulus of Elasticity:196 GPa(28.4 × 103 ksi)
- Magnetic Permeability:1.02 (20°C, annealed state),this material is typically non-magnetic at room temperature.
- Poisson’s Ratio:0.3
| Properties | Room temperature | 200°C (392°F) | 400°C (752°F) |
|---|---|---|---|
| Thermal Conductivity | 11.1 W / m · K | 14.1 W / m · K | 17.3 W / m · K |
| Mean CTE | 14.0 μm / m · °C | 14.9 μm / m · °C | 15.7 μm / m · °C |
| Specific Heat | 440 J / kg · °C | – | |
Note:
The CTE refers to the average value when heated from room temperature (approximately 27°C) to the target temperature.
Applications for Incoloy 825 Pipe & Tube
- Oil & Gas Recovery
- Acid Production
- Chemical Processing
- Pollution Control
- Nuclear Fuel Reprocessing
- Marine Engineering
- Pickling Equipment
- Power Generation
- Food Processing
- Waste Handling
FAQs About UNS N08825 Pipe
Yes.It exhibits excellent weldability and is typically welded using ERNiFeCr-1 filler wire or ENiCrMo-3 (Inconel 625 welding material) for GTAW or GMAW.Post-weld heat treatment is generally not required.
Yes.Due to its molybdenum and chromium content,it exhibits excellent resistance to pitting and crevice corrosion in chloride solutions such as seawater.Its PREN value typically ranges around 31.
Because it contains a high amount of nickel.Nickel is an expensive strategic metal,and its high nickel content is key to ensuring its resistance to stress corrosion cracking.
