ASTM A182 F11 is designed to meet the high temperatures your piping systems often operate at. Standard carbon steel simply won’t cut it. It is critical to select a material that is suitable for high temperature environments. Both F11 and F12 will meet the requirements, but this article focuses on F11, which ensures that stainless steel pipe and stainless steel pipe fittings will perform reliably at elevated temperatures.
What is ASTM A182 F11? A High-Temperature Forging!
ASTM A182 F11 is a specific material standard like ASTM A182 F12. Covering forged or rolled alloy steel pipe flanges, it also includes forged fittings, valves, and other parts. F11 is a chromium-molybdenum (Cr-Mo) alloy steel. Chromium increases its corrosion resistance and molybdenum improves its high temperature strength and creep resistance.
Key Advantages of ASTM A182 F11
ASTM A182 F11 works reliably at high temperatures. This is vital for pressure-containing parts, which are protected from heat softening.
The chromium-molybdenum content prevents creep. Creep is the slow, permanent deformation that occurs over time. Continuous thermal operation is possible.
Chromium forms a stable oxide layer to protect the surface of the material. It prevents degradation in oxidizing environments.
ASTM A182 F11 is easily welded. Forms strong, reliable joints. Proper preheating and post weld heat treatment is recommended.
F11 is often more economical than stainless steel. It has the necessary high-temperature properties to provide great value for specific thermal applications.
Chemical Composition of ASTM A182 F11
| Element | C | Mn | P | S | Si | Cr | Mo |
|---|---|---|---|---|---|---|---|
| Weight (%) | 0.05-0.15 | 0.30-0.80 | ≤0.025 | ≤0.025 | 0.50-1.00 | 1.00-1.50 | 0.44-0.65 |
Typical Mechanical Properties of ASTM A182 F11
| Property | Tensile Strength | Yield Strength | Elongation | Hardness | Operating Temp |
|---|---|---|---|---|---|
| Value (Typical) | ≥485 MPa (70 ksi) | ≥275 MPa (40 ksi) | ≥20 | ≤217 | Up to 593℃(1100℉) |
Applications of ASTM A182 F11 in Piping Systems
- Power Generation: Because it can withstand high heat and pressure, it is well used in steam pipes, headers and boiler components.
- Petrochemical Industry: Commonly used in refineries, heat exchangers and process piping. It handles hot hydrocarbons and prevents thermal degradation.
- Oil & Gas: Used in high temperature piping and forged fittings. It maintains strength at high temperatures and is therefore essential for critical connections.
- Pressure Vessels: Flanges and fittings for pressure vessels are often made of F11. They can withstand extremely high internal pressures at high temperatures.
- Steam Systems: High-pressure steam pipes and associated stainless steel fittings benefit from F11. It reduces the risk of creep distortion.

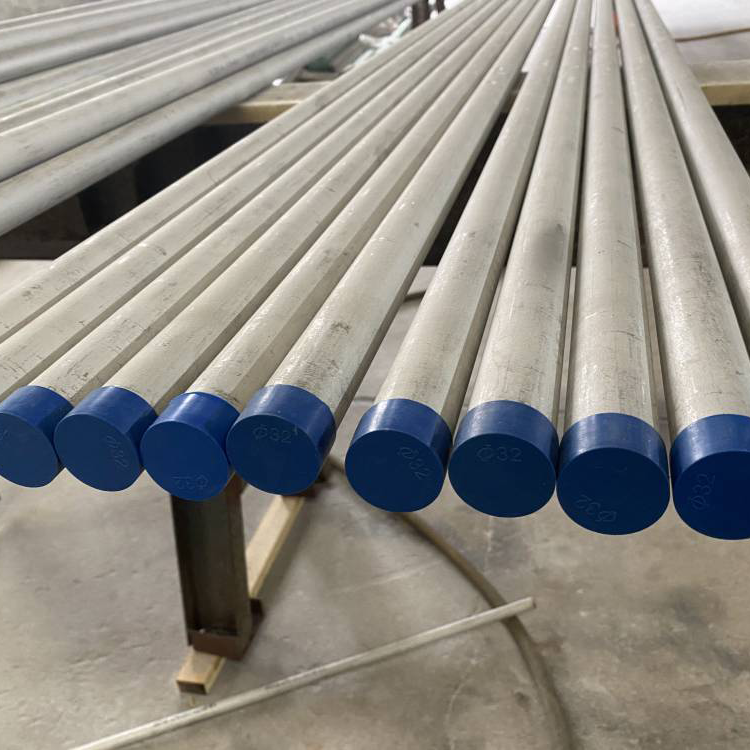

Sourcing ASTM A182 F11 Pipe & Fittings
A complete Material Test Report (MTR) is required to verify compliance with ASTM A182. This ensures that the material composition is accurate.
Work with specialized suppliers of stainless steel pipe and fittings. They understand these alloy steels and can ensure proper fabrication and quality control,and are ISO 9001 and CE-PED certified.
F11 requires specific welding procedures. Post Weld Heat Treatment (PWHT) is often required. Ensure your supplier complies with these requirements.

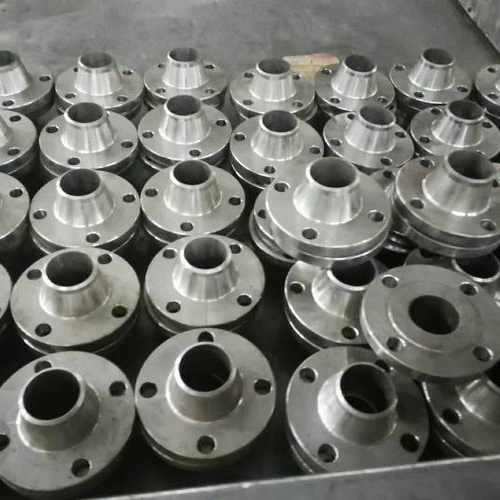

Ensure fittings comply with relevant dimensions, including ASME B16.5 for flanges. proper fitment is critical to a leak-proof system.
