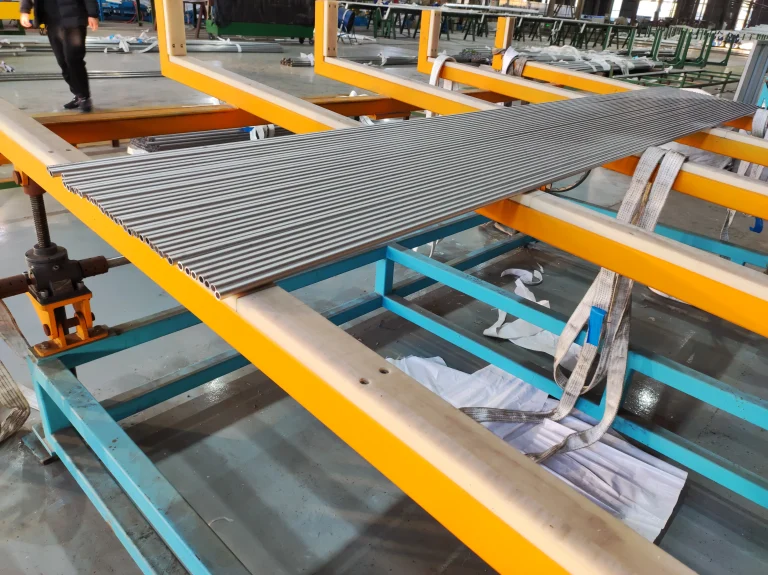

Inconel 725 Pipe
Inconel 725 pipe is a nickel-chromium-molybdenum-niobium tube en alliage de nickel that achieves extremely high strength through age hardening.While offering the same excellent corrosion resistance as Tube en Inconel 625,its mechanical strength is nearly twice that of annealed Inconel 625 pipe.
Key Technical of Inconel 725 Pipe
- Uniform High Strength:
Because its high strength is developed by heat treatment rather than cold work,it achieves uniform properties throughout large,heavy,or non-uniform cross-sections. - Sour Gas Environment Resistance:
Exceptional resistance to SCC,pitting,and crevice corrosion in harsh environments containing CO₂,H₂S, and Cl⁻. - Hydrogen Embrittlement Resistance:
High immunity to hydrogen-induced cracking,making it a preferred choice for high-stress subsea fasteners and components. - Temperature Stability:
Excellent performance from cryogenic levels up to 1200°F (649°C).
Applications of Inconel 725 Pipe
- Downhole tubing
- Sour wells
- Subsea hangers
- Landing nipples
- Pocket mandrels
- Marine fasteners
- Seawater piping
- Acid lines
- Réacteurs chimiques
- Échangeurs de chaleur
- Polymer extruders
- Exhaust manifolds
Vous avez un besoin ?
Kaysuns is a professional supplier of Inconel 725 Pipes.Please feel free to contact me if you have any requirements.
Contactez-nous pour plus d'informations
Chemical Composition of Inconel 725 Pipe
The chemical composition of Inconel 725 Pipe defines it as a premier,age-hardenable nickel-chromium-molybdenum-niobium superalloy.Its precise elemental balance makes it the gold standard for high-stress,extremely corrosive environments.
| Ni | Cr | Mo | Nb | Ti | Fe | Al | C | Mn | Si | P | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 55.0 – 59.0 | 19.0 – 22.50 | 7.0 – 9.50 | 2.75 – 4.0 | 1.0 – 1.70 | Équilibre | ≤ 0.35 | ≤ 0.03 | ≤ 0.35 | ≤ 0.20 | ≤ 0,015 | ≤ 0.010 |
Heat Treatment VS Cold Work
- Uniform Section Properties:
Unlike standard alloys that rely on cold working to gain strength,Inconel 725 gains strength via precipitation heat treatment. - The Structural Advantage:
This means heavy-walled or non-uniform pipes undergo complete,deep-seated strengthening.The core of a thick-walled pipe achieves the exact same structural yield as its outer surface.
Sour Gas Compliance
- Sulfide Stress Cracking (SSC) Immunity:
The 7–9.5% Molybdenum combined with high Nickel content makes this piping material completely resilient against hydrogen sulfide,elemental sulfur,and high-salinity brines found in deep sour gas wells.
Critical Fabrication Insight: Weldability & Machining
Thanks to the low carbon and controlled silicon content,Inconel 725 pipes exhibit excellent weldability using matching composition filler metals (like Inconel 725 or 625) without being prone to post-weld cracking.
Due to its rapid work-hardening rate and high hardness (37+ HRC),it has a low machinability rating (~13%).Threading and boring operations on these pipes require rigid setups,heavy-duty carbide tooling, and slow cutting speeds.
Mechanical Properties of Inconel 725 Pipe
The mechanical properties of Inconel 725 Pipe are what set this superalloy apart from other corrosion-resistant materials.By utilizing precipitation hardening,Inconel 725 pipes deliver ultra-high yield strengths while maintaining excellent ductility and impact toughness,even in heavy-walled sections.
| Biens | Valeur | Engineering Context |
|---|---|---|
| Ultimate Tensile Strength | ≥ 1,034 MPa (≥ 150 ksi) | Maximum stress the pipe can withstand before catastrophic failure. |
| Limite d'élasticité | 827 – 1,034 MPa (120 – 150 ksi) | The point of permanent plastic deformation; nearly double that of standard Inconel 625. |
| Élongation | ≥ 20 % | Indicates excellent structural ductility and safety margins under severe overload. |
| Réduction de la surface | ≥ 35 % | Demonstrates resistance to brittle fracture under multi-axial stress. |
| Dureté | 32 – 40 HRC (302 – 381 HBW) | API 6ACRA typically caps max hardness at 40 HRC to optimize cracking resistance. |
High-Temperature and Cryogenic Performance
- Elevated Temperatures:
Inconel 725 pipes retain a substantial portion of their mechanical strength at temperatures up to 1200°F (649°C).The precipitation-hardened phases (γ”) remain thermally stable,preventing creep and thermal degradation. - Sub-Zero/Cryogenic Temperatures:
Unlike carbon steels or martensitic stainless steels,Inconel 725 does not undergo a ductile-to-brittle transition.It retains exceptional impact strength and toughness at cryogenic temperatures down to -320°F (-196°C).
Deep-Section Mechanical Uniformity
Standard corrosion-resistant alloys must be cold-worked to reach high yield strengths.However,heavy-walled pipes or complex geometric fittings cannot be cold-worked uniformly,leaving the core weaker than the surface.
Because Inconel 725 achieves its mechanical strength via thermal aging,the high yield and tensile properties are uniform throughout the entire wall thickness,whether it is a thin-walled tube or a 3-inch thick-walled high-pressure pipe.
Impact Toughness & Fracture Properties
Inconel 725 pipe typically exhibits high impact energy values (often exceeding 60–80 J / 45–60 ft-lbs at room temperature and sub-zero temperatures).This prevents sudden,catastrophic failure under high-velocity fluid impacts or explosive decompression events.
The fine,homogeneous grain structure coupled with high ultimate tensile strength gives this alloy excellent high-cycle and low-cycle fatigue resistance,crucial for subsea piping subject to ocean wave and current forces.
Seamless VS Welded Inconel 725 Pipe
- Seamless Pipes:
Extruded and hot-finished seamless Inconel 725 pipes provide isotropic mechanical properties,making them preferred for the highest pressure ratings (e.g., 15,000 psi downhole applications). - Welded/EFW Pipes:
When welding Inconel 725 pipes,post-weld heat treatment consisting of full solution annealing and re-aging is absolutely mandatory.Without it,the HAZ will experience alloy segregation,leading to localized drops in yield strength and lower hardness.
Standards & Equivalent Designations of Inconel 725 Pipe
| Catégorie | Standard Code / Designation | Product Form & Material Scope |
|---|---|---|
| Equivalent Codes | UNS N07725 | Unified Numbering System |
| W.Nr. 2.4661 | Werkstoff Number | |
| Normes ASTM | ASTM B705 | Tuyau soudé |
| ASTM B805 | Cold Worked & Aged Pipe / Bar | |
| ASTM B444 | Tuyaux sans soudure | |
| ASME Codes | ASME SB705 | Welded Piping Systems |
| ASME B31.3 | Process Piping Design | |
| API Standards | API Spec 6A / 6ACRA | Age-Hardened CRA Components |
| NACE / ISO Standards | NACE MR0175 / ISO 15156 | Sour Service Material Choice |
| Quality Compliance | EN 10204 3.1 | Material Test Certificate |
| EN 10204 3.2 | Third-Party Witness MTC |
Our Advantages in Manufacturing Inconel 725 Pipe
Advanced Thermal Hardening
Unlike alloys relying on cold work for strength,our Inconel 725 pipes develop superior properties via automated solution annealing and two-stage thermal aging.This precise heat treatment ensures uniform precipitation of γ” phases throughout the material matrix.As a result,heavy-walled pipes achieve identical,isotropic mechanical strength from the core to the outer surface,eliminating the structural imbalances common in cold-worked alternatives.
Exceptional Structural Integrity
We maintain absolute control over microstructural cleanliness to meet strict API 6ACRA standards.Utilizing VIM and VAR,we minimize trace impurities like sulfur and phosphorus while eliminating macro-segregation.This prevents grain-boundary carbide precipitation, resulting in highly uniform grain structures that optimize fracture toughness and high-cycle fatigue resistance under demanding subsea loads.
Flawless Weld Quality
To prevent hot cracking and HAZ degradation,we employ automated, high-precision GTAW and Plasma Arc Welding systems with matching filler metals.Keeping carbon and silicon to ultra-low thresholds ensures excellent weldability.Every welded pipe undergoes a mandatory PWHT—full solution annealing and re-aging—to completely restore uniform hardness and mechanical properties across the joint.
Rigorous Quality Compliance
Every production run undergoes strict non-destructive and destructive testing to ensure zero-defect performance.Our QA pipeline includes mandatory Hydrostatic,UT,and ET testing to flag surface or internal anomalies.Precise PMI and hardness mapping guarantee full compliance with the NACE MR0175 maximum 40 HRC cap,backed by complete EN 10204 3.1/3.2 traceability.
Severe Corrosion Resistance Characteristics
Sour gas destroys standard steel pipes in mere hours.Hydrogen sulfide environments require extreme metallurgical protection immediately.Inconel 725 blocks severe sulfide stress cracking without fail.Marine engineers specify it for prolonged seawater immersion projects constantly.The heavy molybdenum content repels localized chloride attacks effortlessly.Carbon dioxide and brine mixtures cannot penetrate its protective microscopic oxide layer.Upgrading to this alloy saves your facility millions in unexpected replacement costs.You eliminate dangerous pipeline leaks and protect factory workers effectively.
Machining and Fabrication Guidelines
Cutting this dense material requires heavy industrial machine power.Inconel 725 hardens rapidly under heavy physical cutting friction.You must use premium carbide-tipped cutting tools exclusively.Keep your machine spindle speeds very low during all cutting operations.Apply heavy synthetic coolant flows to remove severe cutting heat instantly.Rigid machine clamping prevents metal vibration and protects expensive cutting blades.Standard welding techniques work perfectly if you prepare the joints properly.Always use matching filler metals to maintain total chemical corrosion resistance.
Recommended CNC Machining Parameters
| Machining Operation | Tooling Material | Spindle Speed (SFM) | Feed Rate |
|---|---|---|---|
| Rough Turning | Coated Carbide | 30 – 50 | Heavy, continuous |
| Finish Turning | Sharp Carbide | 50 – 70 | Light, continuous |
| Drilling | Solid Carbide | 15 – 20 | Moderate pressure |
| Milling | Premium Carbide | 20 – 40 | Low chip load |
FAQs About Inconel 725 Pipe
Inconel 625 relies on solid-solution strengthening and cold work for strength.Inconel 725 adds titanium and niobium,allowing precipitation hardening.This heat treatment doubles the yield strength of annealed 625,especially in thick walls where cold working fails.
Oui.Inconel 725 is highly noble.When connected directly to active metals like carbon steel or standard stainless steel in seawater,it accelerates their corrosion.Engineers must use isolation gaskets or sacrificial anodes at connection joints.
Only in limited conditions.While excellent against many reducing media,its passive film can break down under hot,highly concentrated hydrochloric or hydrofluoric acids.For high-concentration HCl or HF lines,Hastelloy B-3 pipes ou Monel 400 pipes are preferred.
Yes,but only in the un-aged state using high-power mandrel equipment,as it work-hardens rapidly.After cold or hot bending,the entire pipe must undergo full solution annealing and aging to restore uniform mechanical properties.
