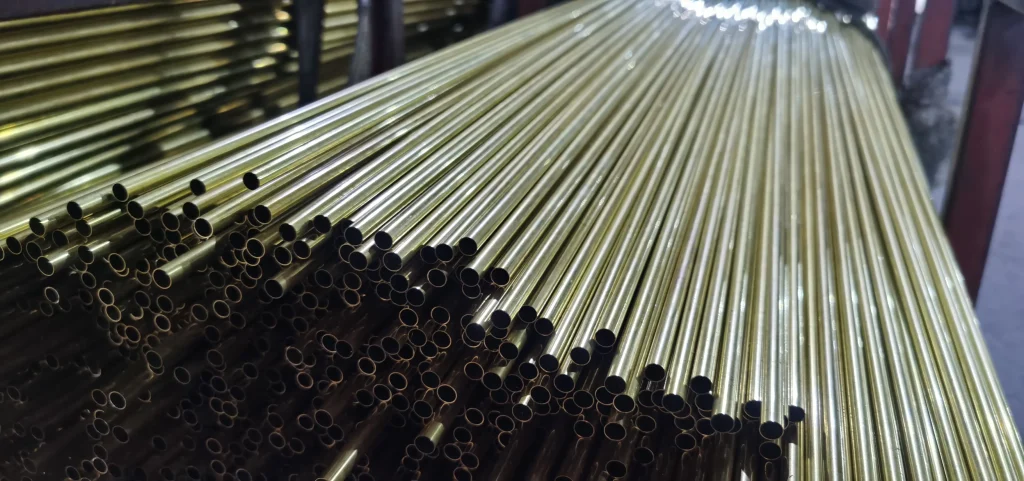

Hastelloy X Pipe Supplier
As a trusted hastelloy x pipe supplier in China,we offer hastelloy x pipes,fittings,flanges,and comprehensive industrial solutions.
Hastelloy X is a high-performance nickel-chromium-iron-molybdenum superalloy specifically designed for extreme high-temperature environments.
Hastelloy X pipe is a piping component made from this material,valued for its unique combination of oxidation resistance,exceptional strength at temperatures up to 2200℉ (1200℃),and ease of fabrication.
Aplicações
Hastelloy X (Alloy X) pipes and fittings are primarily used in high-temperature,high-stress environments where oxidation and carburization resistance are critical.While the alloy itself is famous for jet engine parts,in piping and fitting form,it is essential for conveying hot gases and corrosive fluids in industrial processes.
Hastelloy X Equivalent Designations
- UNS N06002
- Liga X
- DIN 2.4665
- DIN Specification NiCr22Fe18Mo
- AFNOR NC22FeD
- GB GH3536 or GH536
Tem um requisito?
Kaysuns is a professional Hastelloy X Pipe supplier.Please feel free to contact me if you have any requirements.
Entre em contato conosco para obter mais informações
Chemical Composition of Hastelloy X Pipe, wt.%
The following table shows the standard weight percentages as defined by ASTM B619/B622 specifications:
| Ni | Cr | Fe | Mo | Co | C | Mn | Si | C | P | S | B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Equilíbrio | 20.50 – 23.00 | 17.00 – 20.00 | 8.00 – 10.00 | 0.50 – 2.50 | 0.20 – 1.00 | 1,00 Máximo | 1,00 Máximo | 0.05 – 0.15 | 0,04 máx. | 0,03 máx. | 0.008 Max |
What is The Purpose of The High Iron (Fe) Content?
Unlike many other nickel-based high-temperature alloys,which minimize iron content to maximize corrosion resistance,Hastelloy X contains a high percentage of iron.Iron acts as a solid-solution hardener,enhancing high-temperature strength and stability.Compared to low-iron high-temperature alloys,it improves the alloy’s formability and weldability.This helps reduce overall material costs without compromising its signature oxidation resistance.
How Does Chromium (Cr) Contribute to Its Performance?
Chromium is the primary element responsible for this alloy’s excellent environmental resistance.It forms a “tough” and stable protective oxide layer on the surface,preventing degradation at high temperatures.The oxide layer also effectively resists the effects of oxidizing,reducing,and neutral atmospheres.
Mechanical Properties of Hastelloy X Pipe
The mechanical properties of hastelloy x pipes and tubes are characterized by a high strength-to-weight ratio and exceptional stability under prolonged thermal exposure.These properties are typically measured in the solution heat-treated condition(annealed at 2150℉[1177℃] and rapid cooled).
For pipes and tubes,the following typical minimum values are required to meet ASTM B619/B622 and ASME SB619/SB622 standards:
| Resistência à tracção | Resistência ao escoamento (0,2% Offset) | Alongamento | Dureza (máx.) |
|---|---|---|---|
| ≥ 655 MPa(95 ksi) | ≥ 240 MPa(35 ksi) | ≥ 35% | 90 – 95 HRB(180 – 220 HBW) |

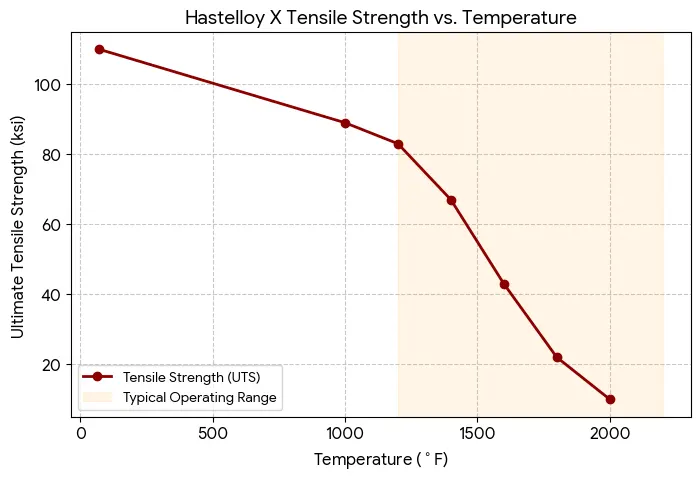

High-Temperature Tensile Strength
One of Hastelloy X’s defining features is its ability to retain significant mechanical integrity as temperatures rise.Below is a representation of how its tensile strength behaves at extreme temperatures:
Creep and Stress-Rupture Strength
- In long-term service (e.g., in furnaces and kilns),creep resistance (slow deformation under load) is more critical than instantaneous tensile strength.
- Typical 10,000-hour fracture strength:
At 1500°F (815°C), Hastelloy X alloy can withstand a stress of approximately 8.5 ksi (59 MPa) for up to 10,000 hours before failure. - Ductility Retention:
Unlike many superalloys that become brittle over time,Alloy X exhibits good ductility even after 16,000 hours of exposure to temperatures between 1200℉ and 1600℉.
Hastelloy X Pipe Physical & Thermal Properties
Propriedades físicas
| Propriedade | Metric Value | Imperial Value |
|---|---|---|
| Densidade | 8.22 g/cm3 | 0.297 lb/in3 |
| Faixa de fusão | 1260 – 1355℃ | 2300 – 2470℉ |
| Electrical Resistivity(22℃) | 1.18μΩ · m | 2300 – 2470℉ |
| Magnetic Permeability | < 1.002 | Não magnético |
| Poisson’s Ratio(22℃) | 0.320 | |
Propriedades térmicas
Hastelloy X is specifically designed for high-temperature stability and features a protective oxide layer on its surface that prevents peeling even under rapid thermal cycling.
Condutividade térmica
- 20°C (70°F): 9.1 W/m·K
- 600°C (1100°F): 20.6 W/m·K
- 900°C (1700°F): 27.4 W/m·K
Coeficiente de expansão térmica
- 26–100°C: 13.8 μm/m·K
- 26–500°C: 14.9 μm/m·K
- 26–1000°C: 16.6 μm/m·K
FAQs About Hastelloy X Pipe
Sim.It exhibits exceptional resistance to carburization and nitriding,which are the primary causes of failure in other high-temperature alloys used in industrial furnaces and petrochemical plants.
Due to work hardening,it is more difficult to machine than ordinary stainless steel.To machine it successfully,it is necessary to use rigid fixtures,sharp carbide or ceramic cutting tools,and low cutting speeds,while maintaining a constant feed rate to prevent “welding” of the tool to the surface.
Escolha Tubo inconel 625 for applications requiring higher tensile and fatigue strength at moderately high temperatures(1800℉).
Escolha hastelloy X pipe when the environment involves extremely high temperatures (1800 – 2200℉) or specifically requires resistance to carburization.
